Document outline in Xamarin

This tutorial only applies to Xamarin.Android. See Xamarin.iOS equivalent here .

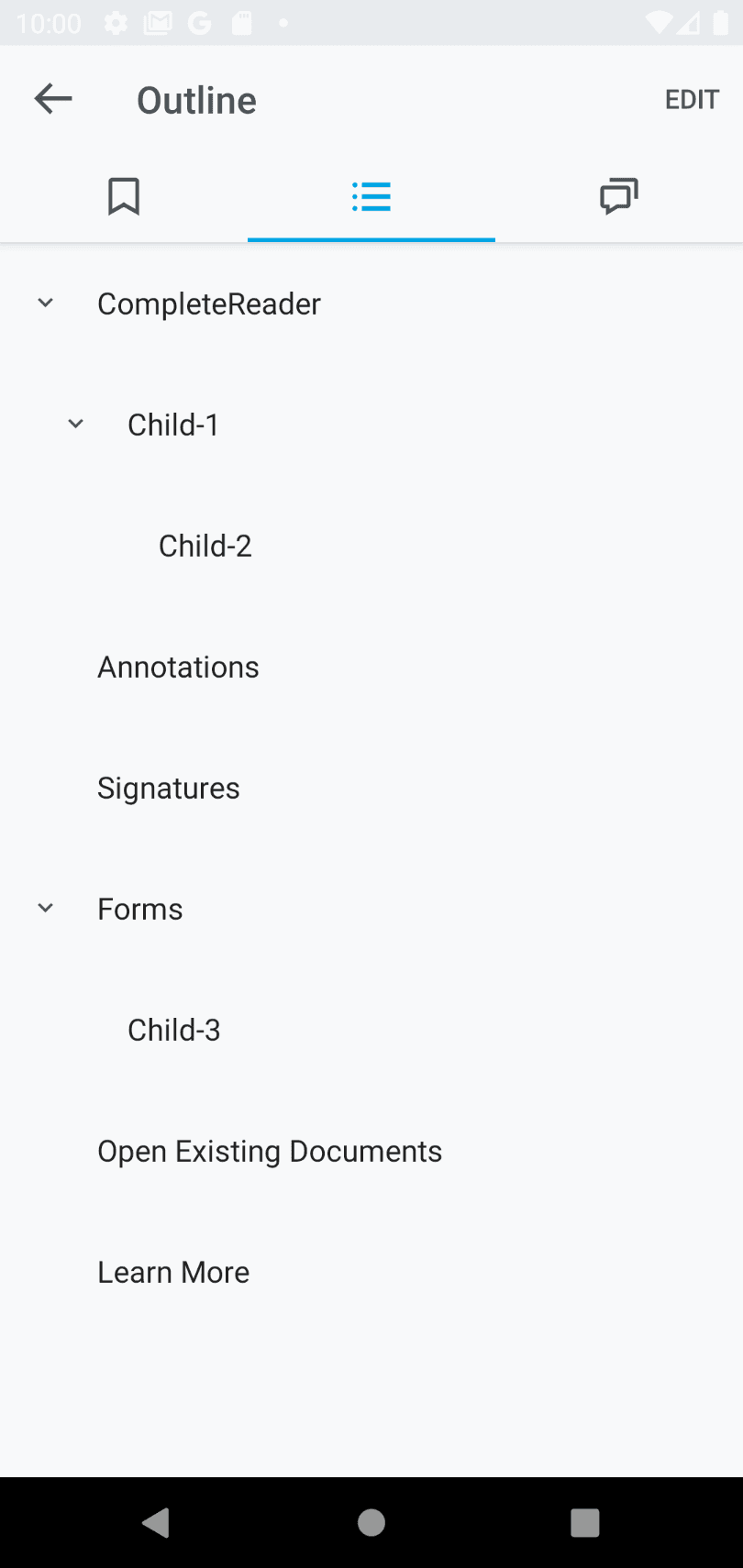

The OutlineDialogFragment displays a document outline (containing PDF Bookmarks that can be used to navigate the PDF document by selecting a bookmark item.

Apryse Docs Image

Show outline dialog

To show an outline dialog fragment in your activity, create a new instance of OutlineDialogFragment by calling newInstance() and setting the PDFViewCtrl:

C#

1fun showBookmarksDialog(fragmentManager: FragmentManager, pdfViewCtrl: PDFViewCtrl): BookmarksDialogFragment {
2    var bookmarksDialog = pdftron.PDF.Dialog.BookmarksDialogFragment.NewInstance();
3    bookmarksDialog.SetPdfViewCtrl(pdfViewCtrl);
4    List<DialogFragmentTab> tabs = new List<DialogFragmentTab>();
5    var outlineDialog = new DialogFragmentTab(
6        Java.Lang.Class.FromType(typeof(OutlineDialogFragment)), BookmarksTabLayout.TagTabOutline, null, "Outline", "Bookmarks Dialog", null);
7    tabs.Add(outlineDialog);
8    bookmarksDialog.SetDialogFragmentTabs(tabs);
9    bookmarksDialog.SetStyle((int)DialogFragmentStyle.NoTitle, Resource.Style.PDFTronAppTheme);
10    bookmarksDialog.Show(fragmentManager, "bookmarks_dialog");
11    return bookmarksDialog;
12}

You can also set the current bookmark using setCurrentBookmark(Bookmark).

Listener

You can set a listener to be notified when an item in an OutlineDialogFragment is clicked by calling setOutlineDialogListener(OutlineDialogListener).
