API for Flutter PDF Viewer

Utility Functions

This section is for some static methods for global library initialization, configuration, and utility. They could only be callable as a plugin. Below is an example for initialize:

PdftronFlutter.initialize('your_license_key');

version

Obtains Apryse SDK version.

String version = PdftronFlutter.version;
print('Current Apryse SDK version is: ' + version);

platformVersion

Obtains the current platform version.

String platformVersion = PdftronFlutter.platformVersion;
print('App is currently running on: ' + platformVersion);

initialize

Initializes Apryse SDK with your Apryse commercial license key. You can run Apryse in demo mode by not passing in a string, or by passing an empty string.

Parameters:

NameTypeRequiredDescription
keyStringtrueyour Apryse license key

Returns a Future.

Demo mode:

PdftronFlutter.initialize();

Using commercial license key:

PdftronFlutter.initialize('your_licensey_key');

setRequestedOrientation

Changes the orientation of this activity. Android only.

For more information on the native API, see the Android API reference.

Parameters:

NameTypeRequiredDescription
requestedOrientationinttrueA PTOrientation orientation constant.

Returns a Future.

PdftronFlutter.setRequestedOrientation(0);

Viewer Functions

This section is for viewer related non-static methods. They would be callable in both plugin and widget versions. For example, openDocument is accessible in 2 ways:

Plugin:

void showViewer() async {
  await PdftronFlutter.openDocument('https://pdftron.s3.amazonaws.com/downloads/pl/PDFTRON_about.pdf');
}

Widget (DocumentViewController):

void _onDocumentViewCreated(DocumentViewController controller) async {
    await controller.openDocument('https://pdftron.s3.amazonaws.com/downloads/pl/PDFTRON_about.pdf');
}

You must choose either the widget or plugin, and use it for all APIs. Mixing widget and plugin APIs will not function correctly. For more information, see Widget or Plugin.

There are several custom classes used in these APIs: Annot, AnnotWithRect, Field, Rect, AnnotFlag, AnnotWithFlag and CustomToolbar. These classes are listed in Options, and the constants that are used in the examples below are all listed in Constants.

Document

openDocument

Opens a document in the viewer with configurations.

Parameters:

NameTypeRequiredDescription
documentStringtruepath to the document
passwordStringfalsepassword to an encrypted document
configConfigfalseviewer configuration options

Returns a Future that would resolve when document is loaded.

For details regarding the config, please see Viewer Configurations.

Example:

var disabledElements = [Buttons.shareButton, Buttons.searchButton];
var disabledTools = [Tools.annotationCreateLine, Tools.annotationCreateRectangle];
var hideDefaultAnnotationToolbars = [DefaultToolbars.annotate, DefaultToolbars.draw];

var config = Config();
config.disabledElements = disabledElements;
config.disabledTools = disabledTools;
config.multiTabEnabled = false;
config.customHeaders = {'headerName': 'headerValue'};
config.hideDefaultAnnotationToolbars = hideDefaultAnnotationToolbars;
config.hideAnnotationToolbarSwitcher = true;
config.continuousAnnotationEditing = true;

var password = 'pdf_password';
await PdftronFlutter.openDocument(_document, password: password, config: config);

saveDocument

Saves the currently opened document in the viewer and get the absolute path to the document. Must only be called when the document is opened in the viewer.

Returns a Future.

Future Parameters:

NameTypeDescription
pathStringthe location of the saved document
var path = await PdftronFlutter.saveDocument();

getDocumentPath

Returns the path of the current document.

Returns a Future.

Future Parameters:

NameTypeDescription
pathStringthe document path
var path = await PdftronFlutter.getDocumentPath();

openAnnotationList

Displays the annotation tab of the existing list container. If this tab has been disabled, the method does nothing.

Returns a Future that resolves when the view has loaded.

await PdftronFlutter.openAnnotationList();

openBookmarkList

Displays the bookmark tab of the existing list container. If this tab has been disabled, the method does nothing.

Returns a Future that resolves when the view has loaded.

await PdftronFlutter.openBookmarkList();

openOutlineList

Displays the outline tab of the existing list container. If this tab has been disabled, the method does nothing.

Returns a Future that resolves when the view has loaded.

await PdftronFlutter.openOutlineList();

openLayersList

On Android it displays the layers dialog while on iOS it displays the layers tab of the existing list container. If this tab has been disabled or there are no layers in the document, the method does nothing.

Returns a Future that resolves when the view has loaded.

await PdftronFlutter.openLayersList();

openNavigationLists

Displays the existing list container. Its current tab will be the one last opened.

Returns a Future that resolves when the view has loaded.

await PdftronFlutter.openNavigationLists();

Viewer UI Configuration

setLeadingNavButtonIcon

Sets the file name of the icon to be used for the leading navigation button. The button will use the specified icon if showLeadingNavButton (which by default is true) is true in the config.

Parameters:

NameTypeDescription
leadingNavButtonIconStringthe icon path to the navigation button

Returns a Future.

PdftronFlutter.setLeadingNavButtonIcon(Platform.isIOS ? 'ic_close_black_24px.png' : 'ic_arrow_back_white_24dp');

Note: to add the image file to your application, please follow the steps below:

Android

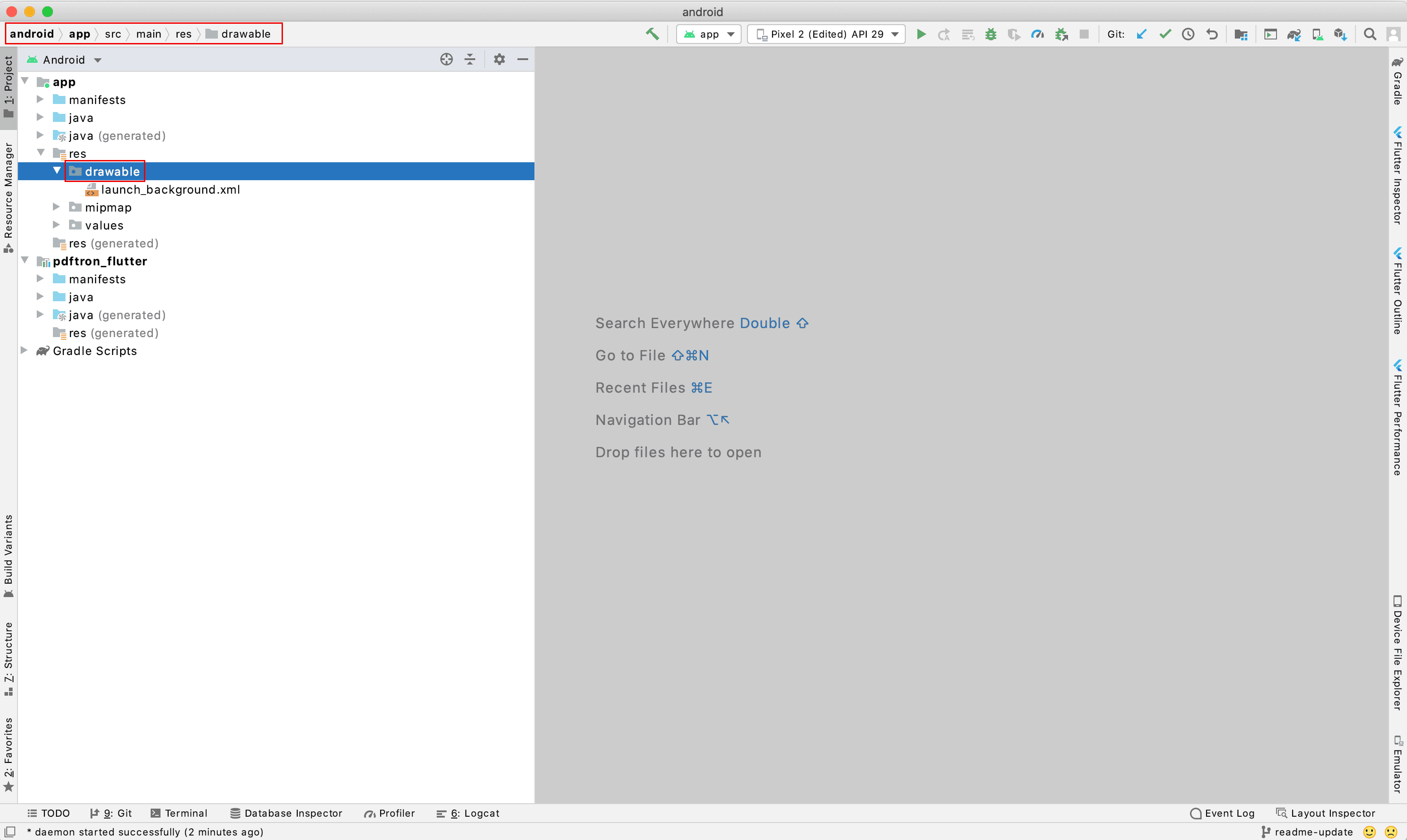

  1. Add the image resource to the example/android/app/src/main/res/drawable directory. For details about supported file types and potential compression, check out Create drawables from resource images.
demo-android
  1. Now you can use the image in the viewer. For example, if you add button_close.png to drawable, you could use 'button_close' in leadingNavButtonIcon.
iOS

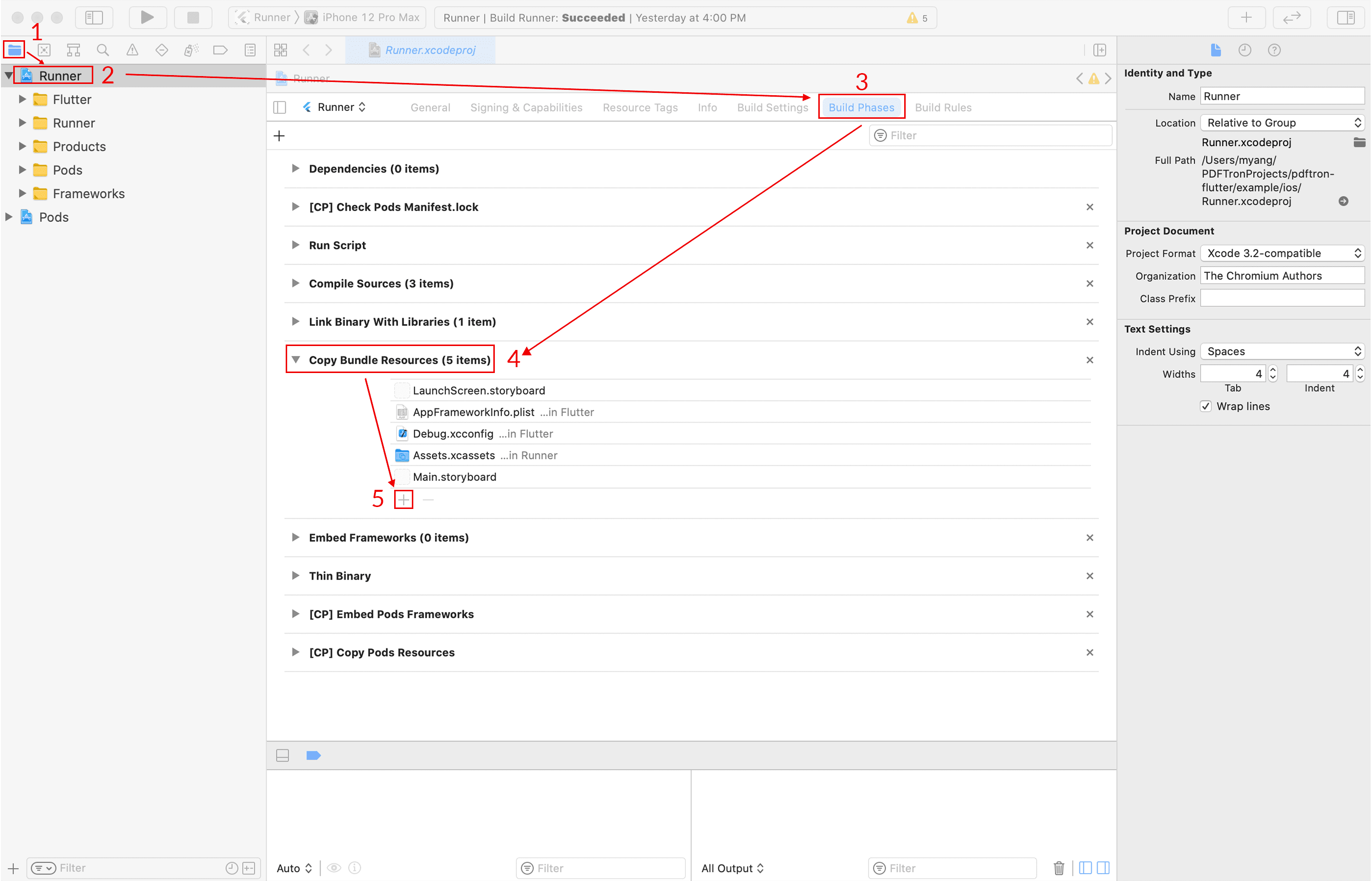

  1. After pods has been installed, open the .xcworkspace file for this application in Xcode (in this case, it's Runner.xcworkspace), and navigate through the list below. This would allow you to add resources, in this case, an image, to your project.
  • "Project navigator"
  • "Runner" (or the app name)
  • "Build Phases"
  • "Copy Bundle Resources"
  • "+".
demo-ios
  1. Now you can use the image in the viewer. For example, if you add button_open.png to the bundle, you could use 'button_open.png' in leadingNavButtonIcon.

Annotation Tools

setToolMode

Sets the current tool mode.

Parameters:

NameTypeDescription
toolModeStringOne of Tools string constants, representing the tool mode to set

Returns a Future.

PdftronFlutter.setToolMode(Tools.annotationCreateEllipse);

commitTool

Commits the current tool, only available for multi-stroke ink and poly-shape.

Returns a Future.

Future Parameters:

NameTypeDescription
committedbooltrue if either ink or poly-shape tool is committed, false otherwise
var committed = await PdftronFlutter.commitTool();
print("Tool committed: $committed");

Page

setCurrentPage

Sets current page of the document. Page numbers are 1-indexed.

Parameters:

NameTypeDescription
pageNumberintthe page number to be set as the current page; 1-indexed

Returns a Future.

Future Parameters:

NameTypeDescription
successboolwhether the setting process is successful.
var setResult = await controller.setCurrentPage(5);
print('Page set ' + (setResult ? 'successfully' : 'unsuccessfully'));

getCurrentPage

Gets current page of the document. Page numbers are 1-indexed.

Returns a Future.

Future Parameters:

NameTypeDescription
currentPageintthe current page of the current document
var currentPage = await PdftronFlutter.getCurrentPage();
print("The current page is $currentPage");

getPageCount

Gets the total number of pages in the currently displayed document.

Returns a Future.

Future Parameters:

NameTypeDescription
pageCountintthe page count of the current document
var pageCount = await PdftronFlutter.getPageCount();
print("The current doc has $pageCount pages");

getPageCropBox

Gets a map object of the crop box for specified page.

Parameters:

NameTypeDescription
pageNumberintthe page number for the target crop box; 1-indexed

Returns a Future.

Future Parameters:

NameTypeDescription
cropBoxRectthe crop box information map. It contains information for position (bottom-left: x1, y1; top-right: x2, y2) and size (width, height)
var cropBox = await PdftronFlutter.getPageCropBox(1);
print('The width of crop box for page 1 is: ' + cropBox.width.toString());

getPageRotation

Gets the rotation value of the specified page in the current document.

Parameters:

NameTypeDescription
pageNumberintthe page number for the target page. It is 1-indexed

Returns a Future.

Future Parameters:

NameTypeDescription
pageRotationintthe rotation degree of the page, one of 0, 90, 180 or 270 (clockwise).
var pageRotation = await PdftronFlutter.getPageRotation(1);
print("The rotation value of page 1 is $pageRotation");

gotoPreviousPage

Go to the previous page of the document. If on first page, it will stay on first page.

Returns a Future.

Future Parameters:

NameTypeDescription
pageChangedboolwhether the setting process was successful (no change due to staying in first page counts as being successful)
var pageChanged = await PdftronFlutter.gotoPreviousPage();
if (pageChanged) {
  print("Successfully went to previous page");
}

gotoNextPage

Go to the next page of the document. If on last page, it will stay on last page.

Returns a Future.

Future Parameters:

NameTypeDescription
pageChangedboolwhether the setting process was successful (no change due to staying in last page counts as being successful)
var pageChanged = await PdftronFlutter.gotoNextPage();
if (pageChanged) {
  print("Successfully went to next page");
}

gotoFirstPage

Go to the first page of the document.

Returns a Future.

Future Parameters:

NameTypeDescription
pageChangedboolwhether the setting process was successful
var pageChanged = await PdftronFlutter.gotoFirstPage();
if (pageChanged) {
  print("Successfully went to first page");
}

gotoLastPage

Go to the last page of the document.

Returns a Future.

Future Parameters:

NameTypeDescription
successboolwhether the setting process was successful
var pageChanged = await PdftronFlutter.gotoLastPage();
if (pageChanged) {
  print("Successfully went to last page");
}

Import/Export Annotations

importAnnotationCommand

Imports remote annotation command to local document. The XFDF needs to be a valid command format with <add><modify><delete> tags.

Parameters:

NameTypeDescription
xfdfCommandStringthe XFDF command string for import

Returns a Future.

var xfdfCommand = 'xfdfCommand <?xml version="1.0" encoding="UTF-8"?><xfdf xmlns="http://ns.adobe.com/xfdf/" xml:space="preserve"><add><circle style="solid" width="5" color="#E44234" opacity="1" creationdate="D:20201218025606Z" flags="print" date="D:20201218025606Z" name="9d0f2d63-a0cc-4f06-b786-58178c4bd2b1" page="0" rect="56.4793,584.496,208.849,739.369" title="PDF" /></add><modify /><delete /><pdf-info import-version="3" version="2" xmlns="http://www.pdftron.com/pdfinfo" /></xfdf>';
PdftronFlutter.importAnnotationCommand(xfdfCommand);

importAnnotations

Imports XFDF annotation string to current document.

Parameters:

NameTypeDescription
xfdfStringannotation string in XFDF format for import

Returns a Future.

var xfdf = '<?xml version="1.0" encoding="UTF-8"?>\n<xfdf xmlns="http://ns.adobe.com/xfdf/" xml:space="preserve">\n\t<annots>\n\t\t<circle style="solid" width="5" color="#E44234" opacity="1" creationdate="D:20190729202215Z" flags="print" date="D:20190729202215Z" page="0" rect="138.824,653.226,236.28,725.159" title="" /></annots>\n\t<pages>\n\t\t<defmtx matrix="1.333333,0.000000,0.000000,-1.333333,0.000000,1056.000000" />\n\t</pages>\n\t<pdf-info version="2" xmlns="http://www.pdftron.com/pdfinfo" />\n</xfdf>';
PdftronFlutter.importAnnotations(xfdf);

exportAnnotations

Extracts XFDF from the current document. If annotationList is null, export all annotations from the document; else export the valid ones specified.

Parameters:

NameTypeDescription
annotationListList of AnnotIf not null, export the XFDF string for the valid annotations; Otherwise, export the XFDF string for all annotations in the current document.

Returns a Future.

Future Parameters:

NameTypeDescription
xfdfStringannotation string in XFDF format

Exports all annotations:

var xfdf = await PdftronFlutter.exportAnnotations(null);

Exports specified annotations:

List<Annot> annotList = new List<Annot>.empty(growable: true);
annotList.add(new Annot('Hello', 1));
annotList.add(new Annot('World', 2));
var xfdf = await PdftronFlutter.exportAnnotations(annotList);

Annotations

flattenAnnotations

Flattens the forms and (optionally) annotations in the current document.

Parameters:

NameTypeDescription
formsOnlyboolDefines whether only forms are flattened. If false, all annotations will be flattened.

Returns a Future.

PdftronFlutter.flattenAnnotations(true);

deleteAnnotations

Deletes the specified annotations in the current document.

Parameters:

NameTypeDescription
annotationsList of Annotthe annotations to be deleted

Returns a Future.

List<Annot> annotList = new List<Annot>.empty(growable: true);
annotList.add(new Annot('Hello', 1));
annotList.add(new Annot('World', 2));
PdftronFlutter.deleteAnnotations(annotList);

deleteAllAnnotations

Deletes all annotations in the current document excluding links and widgets.

Returns a Future.

PdftronFlutter.deleteAllAnnotations();

selectAnnotation

Selects the specified annotation in the current document.

Parameters:

NameTypeDescription
annotationAnnotthe annotation to be selected

Returns a Future.

PdftronFlutter.selectAnnotation(new Annot('Hello', 1));

setFlagsForAnnotations

Sets flags for specified annotations in the current document.

Parameters:

NameTypeDescription
annotationWithFlagsListList of AnnotWithFlagsa list of annotations with respective flags to be set

Returns a Future.

List<AnnotWithFlags> annotsWithFlags = new List<AnnotWithFlags>.empty(growable: true);

Annot hello = new Annot('Hello', 1);
Annot world = new Annot('World', 3);
AnnotFlag printOn = new AnnotFlag(AnnotationFlags.print, true);
AnnotFlag unlock = new AnnotFlag(AnnotationFlags.locked, false);

// you can add an AnnotWithFlags object flexibly like this:
annotsWithFlags.add(new AnnotWithFlags.fromAnnotAndFlags(hello, [printOn, unlock]));
annotsWithFlags.add(new AnnotWithFlags.fromAnnotAndFlags(world, [unlock]));

// Or simply use the constructor like this:
annotsWithFlags.add(new AnnotWithFlags('Pdftron', 10, AnnotationFlags.no_zoom, true));
PdftronFlutter.setFlagsForAnnotations(annotsWithFlags);

setPropertiesForAnnotation

Sets properties for specified annotation in the current document.

Parameters:

NameTypeDescription
annotationAnnotthe annotation to be modified
propertyAnnotPropertythe properties to be set for the target annotation

For settable properties:

NameTypeMarkup exclusive
rectRectno
contentsStringno
subjectStringyes
titleStringyes
contentRectRectyes
rotationintno
Annot pdf = new Annot('pdf', 1);
AnnotProperty property = new AnnotProperty();
property.rect = new Rect.fromCoordinates(1, 1.5, 100.2, 100);
property.contents = 'Hello World';
property.subject = 'sample';
property.title = 'set-props-for-annot';
property.rotation = 90;
PdftronFlutter.setPropertiesForAnnotation(pdf, property);

setFlagForFields

Sets a field flag value on one or more form fields.

Parameters:

NameTypeDescription
fieldNamesList of Stringlist of field names for which the flag should be set
flagintthe flag to be set, one of the constants from FieldFlags
flagValueboolvalue to set for flag

Returns a Future.

PdftronFlutter.setFlagForFields(['First Name', 'Last Name'], FieldFlags.Required, true);

setValuesForFields

Sets field values on one or more form fields of different types.

Parameters:

NameTypeDescription
fieldsList of FieldA list of fields; each field must be set with a name and a value. The value's type can be number, bool or string.

Returns a Future.

PdftronFlutter.setValuesForFields([
      new Field('textField1', "Pdftron"),
      new Field('textField2', 12.34),
      new Field('checkboxField1', true),
      new Field('checkboxField2', false),
      new Field('radioField', 'Yes'),
      new Field('choiceField', 'No')
    ]);

Navigation

handleBackButton

Handles the back button in search mode. Android only.

Returns a Future.

Future Parameters:

NameTypeDescription
handledboolwhether the back button is handled successfully
var handled = await PdftronFlutter.handleBackButton();
print("Back button handled: $handled");

Bookmarks

importBookmarkJson

Imports user bookmarks into the document. The input needs to be a valid bookmark JSON format.

Parameters:

NameTypeDescription
bookmarkJsonStringThe bookmark json for import. It needs to be in valid bookmark JSON format, for example {"0": "Page 1"}. The page numbers are 1-indexed

Returns a Future.

PdftronFlutter.importBookmarkJson("{\"0\": \"Page 1\", \"3\": \"Page 4\"}");

addBookmark

Creates a new bookmark with the given title and page number.

Parameters:

NameTypeDescription
titleStringTitle of the bookmark
pageNumberintThe page number of the new bookmark. It is 1-indexed.

Returns a Future.

PdftronFlutter.addBookmark("Page 7", 6);

Multi-tab

closeAllTabs

Closes all documents that are currently opened in a multiTab environment (that is, multiTabEnabled is true in the config).

Returns a Future.

PdftronFlutter.closeAllTabs();

Events

This section contains all the event listeners you could attach to the viewer.

Document

startDocumentLoadedListener

Event is raised when the document finishes loading.

Event Parameters:

NameTypeDescription
pathStringthe path to where the document is saved
var documentLoadedCancel = startDocumentLoadedListener((path)
{
  print("flutter document loaded: $path");
});

startDocumentErrorListener

Event is raised when the document has errors when loading.

var documentErrorCancel = startDocumentErrorListener((){
  print("flutter document loaded unsuccessfully");
});

Viewer

startLeadingNavButtonPressedListener

Event is raised when the leading navigation button is pressed.

var navPressedCancel = startLeadingNavButtonPressedListener(()
{
  print("flutter nav button pressed");
});

Page

startPageChangedListener

Event is raised when the current page changes.

Event Parameters:

NameTypeDescription
previousPageNumberintthe previous page number
pageNumberintthe current page number
var pageChangedCancel = startPageChangedListener((previousPageNumber, pageNumber)
{
  print("flutter page changed. from $previousPageNumber to $pageNumber");
});

startPageMovedListener

Event is raised when a page has been moved in the document.

Event Parameters:

NameTypeDescription
previousPageNumberintthe previous page number
pageNumberintthe current page number
var pageMovedCancel = startPageMovedListener((previousPageNumber, pageNumber) {
  print("flutter page moved from $previousPageNumber to $pageNumber");
});

Import/Export Annotations

startExportAnnotationCommandListener

Event is raised when local annotation changes committed to the document.

Event Parameters:

NameTypeDescription
xfdfCommandStringthe XFDF command string exported
var annotCancel = startExportAnnotationCommandListener((xfdfCommand) {
  // local annotation changed
  // upload XFDF command to server here
  print("flutter xfdfCommand: $xfdfCommand");
});

Annotations

startAnnotationChangedListener

Event is raised when there is a change to annotations to the document.

Event Parameters:

NameTypeDescription
actionStringthe action that occurred (add, delete, modify)
annotationsList of Annotthe annotations that have been changed
var annotChangedCancel = startAnnotationChangedListener((action, annotations)
{
  print("flutter annotation action: ${action}");
  for (Annot annot in annotations) {
    print("annotation has id: ${annot.id}");
    print("annotation is in page: ${annot.pageNumber}");
  }
});

startAnnotationsSelectedListener

Event is raised when annotations are selected.

Event Parameters:

NameTypeDescription
annotationWithRectsList of AnnotWithRectThe list of annotations with their respective rects
var annotsSelectedCancel = startAnnotationsSelectedListener((annotationWithRects)
{
  for (AnnotWithRect annotWithRect in annotationWithRects) {
    print("annotation has id: ${annotWithRect.id}");
    print("annotation is in page: ${annotWithRect.pageNumber}");
    print("annotation has width: ${annotWithRect.rect.width}");
  }
});

startFormFieldValueChangedListener

Event is raised when there are changes to form field values.

Event Parameters:

NameTypeDescription
fieldsList of Fieldthe fields that are changed
var fieldChangedCancel = startFormFieldValueChangedListener((fields)
{
  for (Field field in fields) {
    print("Field has name ${field.fieldName}");
    print("Field has value ${field.fieldValue}");
  }
});

Annotation Menu

startAnnotationMenuPressedListener

Event is raised on annotation menu pressed if it is passed into overrideAnnotationMenuBehavior.

Event Parameters:

NameTypeDescription
annotationMenuItemone of the AnnotationMenuItems constantsThe menu item that has been pressed
annotationsList of AnnotThe annotations associated with the menu
var annotationMenuPressedCancel = startAnnotationMenuPressedListener((annotationMenuItem, annotations)
{
  print("Annotation menu item " + annotationMenuItem + " has been pressed");
  for (Annot annotation in annotations) {
    print("Annotation has id: ${annotation.id}");
    print("Annotation is in page: ${annotation.pageNumber}");
  }
});

Long Press Menu

startLongPressMenuPressedListener

Event is raised on long press menu pressed if it is passed into overrideLongPressMenuBehavior.

Event Parameters:

NameTypeDescription
longPressMenuItemone of the LongPressMenuItems constantsThe menu item that has been pressed
longPressTextstringThe selected text if pressed on text, empty otherwise
var longPressMenuPressedCancel = startLongPressMenuPressedListener((longPressMenuItem, longPressText)
{
  print("Long press menu item " + longPressMenuItem + " has been pressed");
  if (longPressText.length > 0) {
    print("The selected text is: " + longPressText);
  }
});

Custom Behavior

startBehaviorActivatedListener

Event is raised on certain behaviors, if any is passed into overrideBehavior.

action | String, one of the Behaviors constants | The behavior which has been activated data | map | detailed information regarding the behavior

var behaviorActivatedCancel = startBehaviorActivatedListener((action, data) {
  print('action is ' + action);
  print('url is ' + data['url']);

Bookmarks

startExportBookmarkListener

Event is raised when user bookmark changes committed to the document.

Event Parameters:

NameTypeDescription
bookmarkJsonStringthe bookmark json string exported
var bookmarkCancel = startExportBookmarkListener((bookmarkJson) {
  print("flutter bookmark: ${bookmarkJson}");
});

Zoom

startZoomChangedListener

Event is raised when zoom ratio is changed in the current document.

Event Parameters:

NameTypeDescription
zoomdoublethe zoom ratio in the current document viewer
var zoomChangedCancel = startZoomChangedListener((zoom)
{
  print("flutter zoom changed. Current zoom is: $zoom");
});

Viewer Configurations

This section is the configuration part of the openDocument function. You could also refer to Config for all mutable properties.

Document

customHeaders

map<string, string>, defaults to empty.

Defines custom headers to use with HTTP/HTTPS requests.

config.customHeaders = {'headerName': 'headerValue'};

readOnly

bool, defaults to false.

Defines whether the viewer is read-only. If true, the UI will not allow the user to change the document.

config.readOnly = true;

defaultEraserType

one of the DefaultEraserType constants, optional

Sets the default eraser tool type. Value only applied after a clean install.

Eraser TypeDescription
annotationEraserErases everything as an object; if you touch ink, the entire object is erased.
hybrideEraserErases ink by pixel, but erases other annotation types as objects.
inkEraserErases ink by pixel only. Android only.
config.defaultEraserType = DefaultEraserType.inkEraser;

isBase64String

bool, defaults to false.

If true, document in openDocument will be treated as a base64 string.

When viewing a document initialized with a base64 string (i.e. a memory buffer), a temporary file is created on Android, but not on iOS. (If you need access to a file-backed PDF on iOS, save the base64 string to disk, and open the file located at that path.)

config.isBase64String = true;

base64FileExtension

String, defaults to .pdf, required if using base64 string of a non-pdf file.

Defines the file extension for the base64 string in document, if isBase64String is true.

UI Customization

disabledElements

array of Buttons constants, defaults to none.

Defines buttons to be disabled for the viewer.

var disabledElements = [Buttons.shareButton, Buttons.searchButton];
config.disabledElements = disabledElements;

disabledTools

array of Tools constants, defaults to none.

Defines tools to be disabled for the viewer.

var disabledTools = [Tools.annotationCreateLine, Tools.annotationCreateRectangle];
config.disabledTools = disabledTools;

showLeadingNavButton

bool, defaults to true.

Defines whether to show the leading navigation button.

config.showLeadingNavButton = true;

Toolbar Customization

annotationToolbars

array of CustomToolbar objects or DefaultToolbars constants.

Defines custom toolbars. If passed in, the set of default toolbars will no longer appear. It is possible to mix and match with default toolbars. See example below:

// Viewer will use a custom defined toolbar and a default annotate toolbar in this case
var customToolbar = new CustomToolbar('myToolbar', 'myToolbar', [Tools.annotationCreateArrow, Tools.annotationCreateCallout], ToolbarIcons.favorite);
var annotationToolbars = [DefaultToolbars.annotate, customToolbar];

hideDefaultAnnotationToolbars

array of DefaultToolbars constants, defaults to none.

Defines which default annotation toolbars should be hidden. Note that this should be used when annotationToolbars is not defined.

// Viewer will use all the default toolbars except annotate or draw in this case
var hideDefaultAnnotationToolbars = [DefaultToolbars.annotate, DefaultToolbars.draw];
config.hideDefaultAnnotationToolbars = hideDefaultAnnotationToolbars;

hideAnnotationToolbarSwitcher

bool, defaults to false.

Defines whether to show the toolbar switcher in the top toolbar.

config.hideAnnotationToolbarSwitcher = true;

hideTopToolbars

bool, defaults to false.

Defines whether to hide both the top app nav bar and the annotation toolbar.

config.hideTopToolbars = true;

hideTopAppNavBar

bool, defaults to false.

Defines whether to hide the top navigation app bar.

config.hideTopAppNavBar = true;

hideBottomToolbar

bool, defaults to false.

Defines whether to hide the bottom toolbar for the current viewer.

config.hideBottomToolbar = true;

Layout

fitMode

one of the FitModes constants, default value is 'FitWidth'.

Defines the fit mode (default zoom level) of the viewer.

config.fitMode = FitModes.fitHeight;

layoutMode

one of the LayoutModes constants, default value is 'Continuous'.

Defines the layout mode of the viewer.

config.layoutMode = LayoutModes.facingCover;

Page

initialPageNumber

number, optional.

Defines the initial page number that viewer displays when the document is opened. Note that page numbers are 1-indexed.

config.initialPageNumber = 5;

pageChangeOnTap

bool, defaults to true.

Defines whether the viewer should change pages when the user taps the edge of a page, while the viewer is in a horizontal viewing mode.

config.pageChangeOnTap = true;

pageIndicatorEnabled

bool, defaults to true.

Defines whether to show the page indicator for the viewer.

config.pageIndicatorEnabled = true;

pageNumberIndicatorAlwaysVisible

bool, defaults to false.

Defines whether the page indicator will always be visible.

config.pageNumberIndicatorAlwaysVisible = true;

Annotations

annotationPermissionCheckEnabled

bool, defaults to false.

Defines whether annotation's flags will be taken into account when it is selected, for example, an annotation with a locked flag can not be resized or moved.

config.annotationPermissionCheckEnabled = true;

annotationAuthor

String.

Defines the author name for all annotations created on the current document. Exported xfdfCommand will include this piece of information.

config.annotationAuthor = 'Apryse';

continuousAnnotationEditing

bool, defaults to true.

If true, the active annotation creation tool will remain in the current annotation creation tool. Otherwise, it will revert to the "pan tool" after an annotation is created.

config.continuousAnnotationEditing = true;

selectAnnotationAfterCreation

bool, defaults to true.

Defines whether an annotation is selected after it is created. On iOS, this functions for shape and text markup annotations only.

config.selectAnnotationAfterCreation = true;

disableEditingByAnnotationType

array of Tools constants, defaults to none.

Defines annotation types that cannot be edited after creation.

config.disableEditingByAnnotationType = [Tools.annotationCreateTextSquiggly, Tools.annotationCreateTextHighlight, Tools.annotationCreateEllipse];

Annotation Menu

hideAnnotationMenu

array of Tools constants, defaults to none

Defines annotation types that will not show the default annotation menu.

config.hideAnnotationMenu = [Tools.annotationCreateArrow, Tools.annotationEraserTool];

annotationMenuItems

array of AnnotationMenuItems constants, default contains all items

Defines the menu items that can show when an annotation is selected.

config.annotationMenuItems = [AnnotationMenuItems.search, AnnotationMenuItems.share];

overrideAnnotationMenuBehavior

array of AnnotationMenuItems constants, defaults to none

Defines the menu items that will skip default behavior when pressed. They will still be displayed in the annotation menu, and the event handler startAnnotationMenuPressedListener will be called from which custom behavior can be implemented.

config.overrideAnnotationMenuBehavior = [AnnotationMenuItems.copy];

Long Press Menu

longPressMenuEnabled

bool, defaults to true

Defines whether to show the popup menu of options after the user long presses on text or blank space on the document.

config.longPressMenuEnabled = false;

longPressMenuItems

array of LongPressMenuItems constants, optional, default contains all the items

Defines menu items that can be shown when long pressing on text or blank space.

config.longPressMenuItems = [LongPressMenuItems.search, LongPressMenuItems.share];

overrideLongPressMenuBehavior

array of LongPressMenuItems constants, optional, defaults to none

Defines the menu items on long press that will skip default behavior when pressed. They will still be displayed in the long press menu, and the event handler startLongPressMenuPressedListener will be called where custom behavior can be implemented.

config.overrideLongPressMenuBehavior = [LongPressMenuItems.copy];

Custom Behavior

overrideBehavior

array of Behaviors constants, defaults to false.

Defines actions that should skip default behavior, such as external link click. The event handler startBehaviorActivatedListener will be called when the behavior is activated, where custom behavior can be implemented.

config.overrideBehavior = [Behaviors.linkPress];

Multi-tab

multiTabEnabled

bool, defaults to false.

Defines whether viewer will use tabs in order to have more than one document open simultaneously (like a web browser). Calling openDocument with this value being true will cause a new tab to be opened with the associated document.

config.multiTabEnabled = true;

tabTitle

String, default is the file name.

Sets the tab title if multiTabEnabled is true. (For Android, tabTitle is only supported on the widget viewer)

config.tabTitle = 'tab1';

Signature

signSignatureFieldsWithStamps

bool, defaults to false.

Defines whether signature fields will be signed with image stamps. This is useful if you are saving XFDF to remote source.

config.signSignatureFieldsWithStamps = true;

showSavedSignatures

bool, defaults to true.

Defines whether to show saved signatures for re-use when using the signing tool.

config.showSavedSignatures = true;

Thumbnail Browser

thumbnailViewEditingEnabled

bool, defaults to true.

Defines whether user can modify the document using the thumbnail view (e.g. add/remove/rotate pages).

config.thumbnailViewEditingEnabled = false;

hideThumbnailFilterModes

array of ThumbnailFilterModes constants, defaults to none.

Defines filter Modes that should be hidden in the thumbnails browser.

config.hideThumbnailFilterModes = [ThumbnailFilterModes.annotated];

View Mode Dialog

hideViewModeItems

array of ViewModePickerItem constants, optional, defaults to none.

Defines view mode items to be hidden in the view mode dialog.

config.hideViewModeItems=[ViewModePickerItem.ColorMode, ViewModePickerItem.Crop];

Others

autoSaveEnabled

bool, dafaults to true.

Defines whether document is automatically saved by the viewer.

config.autoSaveEnabled = true;

useStylusAsPen

bool, defaults to true.

Defines whether a stylus should act as a pen when in pan mode. If false, it will act as a finger.

config.useStylusAsPen = true;

followSystemDarkMode

bool, Android only, defaults to true.

Defines whether the UI will appear in a dark color when the system is dark mode. If false, it will use viewer setting instead.

config.followSystemDarkMode = false;

Trial setup questions? Ask experts on Discord
Need other help? Contact Support
Pricing or product questions? Contact Sales
