Version 10.2.0 Changelog (June 21, 2023)

Version: 10.2.0.82346

Release Date: June 21, 2023

New features

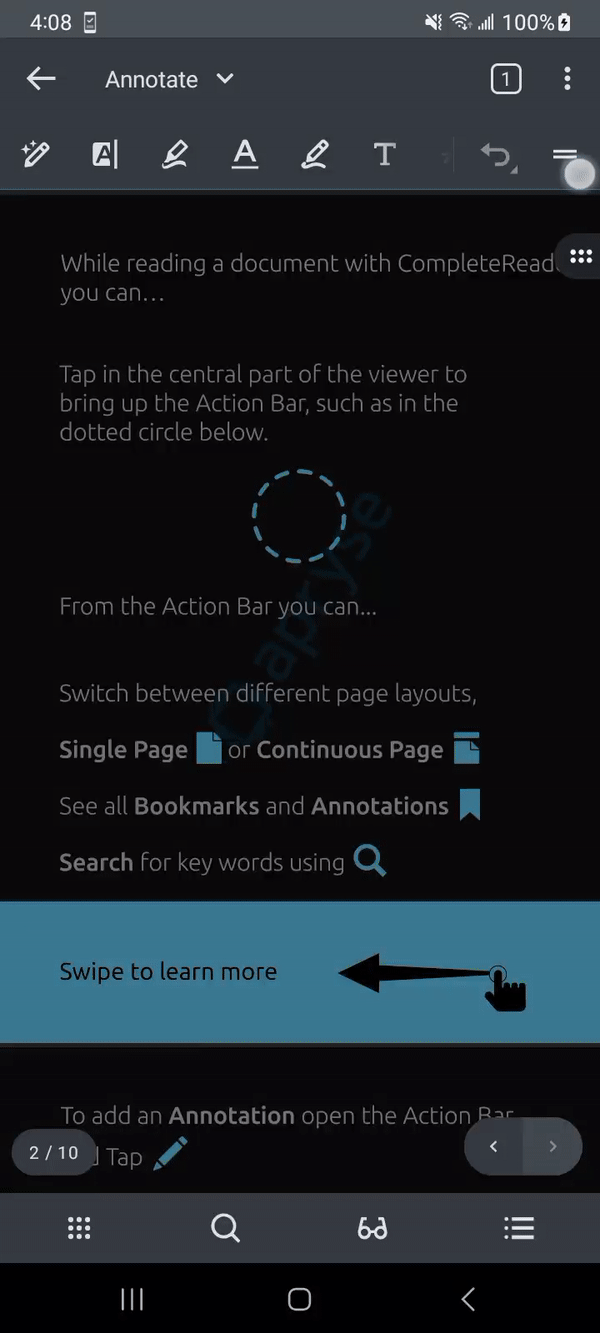

  • Adds ViewerConfig.Builder.movableToolbarEnabled(bool) to move annotation toolbar to left, right, and bottom edge of the viewer
Apryse Docs Image
  • Adds ToolManagerBuilder.setInsertMultipleImagesEnabled(bool) to add multiple image stamps to the viewer at a time

Breaking changes

  • com.edmodo:cropper:2.0.0 dependency must be removed from dependency list if you integrated manually with AAR or Tools source project

Notes

This release of Apryse for Android brings the core PDF functionality inline with version 10.2.0 of the Apryse cross-platform APIs. More information can be found on What's new for cross-platform APIs. Most non-module related changes apply to Android.

Fixed

  • Fix issue where view mode dialog is cutoff in phone landscape mode
  • Fix issue where search would not restart when show/hide the full search result window
  • Fix issue where on tablet signature selection dialog does not show up on first tap
  • Fix issue where line ending style changes when select/deselect
  • Fix potential crash when import XFDF to collaboration viewer when bbox is invalid
  • Fix potential crash when rotating signature selection dialog when activity is recreated on orientation change
  • Improve ReflowControl where show/hide toolbar will no longer change current viewport

APIs

PDFViewCtrlTools package

ToolManagerBuilder

new method: ToolManagerBuilder setInsertMultipleImagesEnabled(boolean)

ViewerConfig

new method: AnnotationToolbarPosition annotationToolbarPosition()

new method: boolean movableToolbarEnabled()

new method: boolean presetExpanding()

new method: boolean showEmptyPreset()

Builder

new method: Builder annotationToolbarPosition(AnnotationToolbarPosition)

new method: Builder movableToolbarEnabled(boolean)

new method: Builder presetExpanding(boolean)

new method: Builder showEmptyPreset(boolean)

Builder

new method: Builder setShowHorizontally(boolean)

PdfViewCtrlTabFragment2

new method: View getOverlayStub()

new method: void setAnnotationToolbarComponentListener(AnnotationToolbarComponentListener)

AnnotationToolbarComponentListener

new interface: AnnotationToolbarComponentListener

new method: AnnotationToolbarPosition getAnnotationToolbarPosition()

PdfViewCtrlTabHostFragment2

new method: AnnotationToolbarPosition getAnnotationToolbarPosition()

new method: boolean onDrag(View, DragEvent)

new method: void setAnnotationToolbarPosition(AnnotationToolbarPosition)

modified class: PdfViewCtrlTabHostFragment2

Declaration

From:

public class PdfViewCtrlTabHostFragment2 extends PdfViewCtrlTabHostBaseFragment implements TabListener,SnackbarListener,ComponentListener

To:

public class PdfViewCtrlTabHostFragment2 extends PdfViewCtrlTabHostBaseFragment implements TabListener,SnackbarListener,ComponentListener,AnnotationToolbarComponentListener,OnDragListener

AnnotationToolbarPosition

new final class: AnnotationToolbarPosition

new static final field: AnnotationToolbarPosition BOTTOM

new static final field: AnnotationToolbarPosition END

new static final field: AnnotationToolbarPosition START

new static final field: AnnotationToolbarPosition TOP

new static method: boolean isVertical(AnnotationToolbarPosition)

new static method: AnnotationToolbarPosition valueOf(String)

new static method: AnnotationToolbarPosition[] values()

ReflowControl

new method: void scrollPageBy(int, int)

ReflowPagerAdapter

new method: void scrollPageBy(int, int)

StyleDialogBehavior

new class: StyleDialogBehavior

new method: boolean onLayoutChild(CoordinatorLayout, View, int)

new method: void showHorizontally(boolean)

TabSwitcherAdapter

new method: ArrayList<TabSwitcherItem> getItems()

new method: void insert(int, TabSwitcherItem)

new method: void onItemDismiss(int)

new method: void onItemDrop(int, int)

new method: boolean onItemMove(int, int)

new method: TabSwitcherItem removeAt(int)

modified class: TabSwitcherAdapter

Declaration

From:

public class TabSwitcherAdapter extends Adapter

To:

public class TabSwitcherAdapter extends Adapter implements ItemTouchHelperAdapter

TabSwitcherDialogFragment

new method: void onDismiss(DialogInterface)

TabSwitcherItem

new method: boolean equals(Object)

new method: int hashCode()

Builder

new method: Builder setShowHorizontally(boolean)

LineCreate

new static method: void calculateLineEndingStyle(LineEndingStyle, PointF, PointF, PointF, PointF, LineEndingCalculationVariables)

removed static method: void calculateLineEndingStyle(LineEndingStyle, LineEndingStyle, PointF, PointF, PointF, PointF, PointF, PointF, float, double, LineEndingCalculationVariables)

Stamper

new static field: int STAMPER_MULTI_SELECT_MAX_NUM

ToolManager

new method: boolean isInsertMultipleImagesEnabled()

new method: void setInsertMultipleImagesEnabled(boolean)

LineEndingCalculationVariables

new constructor: LineEndingCalculationVariables(PointF, PointF, float, double, LineEndingStyle, LineEndingStyle)

new method: void recalculate(Vec2, Vec2)

removed field: Vec2 current

removed field: Vec2 end

removed field: double len

removed field: Vec2 line

removed field: Vec2 line90

removed field: double sqrt2

removed field: double sqrt3

PdfViewCtrlSettingsManager

new static method: AnnotationToolbarPosition getAnnotationToolbarPosition(Context, AnnotationToolbarPosition)

new static method: void setAnnotationToolbarPosition(Context, AnnotationToolbarPosition)

Utils

new static method: boolean isAndroidT()

new static method: void requestPostNotificationsPermissions(Activity, int)

Vec2

new method: void addX(Vec2)

new method: void addY(Vec2)

new method: Vec2 normalized()

new method: void subtractX(Vec2)

new method: void subtractY(Vec2)

ViewerUtils

new static method: Uri openImageIntent(Fragment, boolean)

new static method: List<Map<String, Object>> readMultiImageIntent(Intent, Context, Uri, boolean)

ConsumeEndInsetFrameLayout

new class: ConsumeEndInsetFrameLayout

new constructor: ConsumeEndInsetFrameLayout(Context)

new constructor: ConsumeEndInsetFrameLayout(Context, AttributeSet)

new constructor: ConsumeEndInsetFrameLayout(Context, AttributeSet, int)

new method: WindowInsets dispatchApplyWindowInsets(WindowInsets)

ConsumeHorizontalInsetFrameLayout

new class: ConsumeHorizontalInsetFrameLayout

new constructor: ConsumeHorizontalInsetFrameLayout(Context)

new constructor: ConsumeHorizontalInsetFrameLayout(Context, AttributeSet)

new constructor: ConsumeHorizontalInsetFrameLayout(Context, AttributeSet, int)

new method: WindowInsets dispatchApplyWindowInsets(WindowInsets)

ConsumeStartInsetFrameLayout

new class: ConsumeStartInsetFrameLayout

new constructor: ConsumeStartInsetFrameLayout(Context)

new constructor: ConsumeStartInsetFrameLayout(Context, AttributeSet)

new constructor: ConsumeStartInsetFrameLayout(Context, AttributeSet, int)

new method: WindowInsets dispatchApplyWindowInsets(WindowInsets)

PresetActionButton

new method: void setPresetIconSize(int)

new method: void setVerticalLayout(AnnotationToolbarPosition)

PresetBarView

new constructor: PresetBarView(ViewGroup, AnnotationToolbarPosition)

new method: AnnotationToolbarPosition getToolbarPosition()

new method: void setInsideAnnotationToolbar(boolean)

new method: void setVerticalLayout(AnnotationToolbarPosition)

PresetSingleButton

new method: void setVerticalLayout(AnnotationToolbarPosition)

TabletPresetBarView

new constructor: TabletPresetBarView(ViewGroup, AnnotationToolbarPosition)

SignaturePresetComponent

new constructor: SignaturePresetComponent(LifecycleOwner, SignatureViewModel, Context)

new method: void createSignatureSelectionDialog()

new method: void setAnchorView(View)

new method: void setShowHorizontally(boolean)

new method: void show(FragmentManager)

removed constructor: SignaturePresetComponent(LifecycleOwner, SignatureViewModel, SignatureSelectionView, Context)

removed method: void show()

SignatureSelectionDialog

new constructor: SignatureSelectionDialog()

new method: void closeDialog()

new static method: SignatureSelectionDialog newInstance()

new method: void setShowHorizontally(boolean)

new method: void showDialog(FragmentManager)

removed constructor: SignatureSelectionDialog(FragmentManager)

removed method: void close()

removed method: void show()

SignatureSelectionView

new method: void closeDialog()

new method: void showDialog(FragmentManager)

removed method: void close()

removed method: void show()

ToolbarButtonType

new static final field: ToolbarButtonType DRAG_HANDLE

AnnotationToolbarComponent

new method: void addButtonLongClickListener(OnLongClickListener)

new method: void addToolbarActionsLeftOptionalContainer(View)

new method: ActionToolbar getToolbarView()

new method: void removeButtonLongClickListener(OnLongClickListener)

new method: void setVerticalLayout(ViewGroup, AnnotationToolbarPosition)

modified method: AppCompatButton buildRedactionApplyButton()

Declaration

From:

public AppCompatButton buildRedactionApplyButton()

To:

public View buildRedactionApplyButton()

ButtonId

new static final field: ButtonId DRAG_HANDLE

TabletAnnotationToolbarComponent

new constructor: TabletAnnotationToolbarComponent(LifecycleOwner, FragmentManager, AnnotationToolbarViewModel, PresetBarViewModel, ToolManagerViewModel, SignatureViewModel, AnnotationToolbarView, TabletPresetBarView, boolean, HashSet<ToolbarButtonType>, boolean)

new method: void setInsideAnnotationToolbar(boolean)

new method: void setPresetBarVerticalLayout(AnnotationToolbarPosition)

removed constructor: TabletAnnotationToolbarComponent(Fragment, FragmentManager, AnnotationToolbarViewModel, PresetBarViewModel, ToolManagerViewModel, SignatureViewModel, AnnotationToolbarView, boolean, HashSet<ToolbarButtonType>, boolean)

removed method: void setTabletMode(boolean)

ActionToolbar

new constructor: ActionToolbar(Context, AnnotationToolbarPosition, boolean, boolean)

new method: void addToolbarActionsLeftOptionalContainer(View)

new method: AnnotationToolbarPosition getToolbarPosition()

new method: boolean isVertical()

new method: void scrollToToolButton(int)

new method: void setVerticalLayout(AnnotationToolbarPosition)

AnnotationToolbarImageButtonInflater

new class: AnnotationToolbarImageButtonInflater

new static method: AppCompatImageButton inflate(Context, int)

AnnotationToolbarView

new constructor: AnnotationToolbarView(ViewGroup, AnnotationToolbarPosition, boolean, boolean)

new method: void addToolbarActionsLeftOptionalContainer(View)

new method: ActionToolbar getActionToolbar()

new method: AnnotationToolbarPosition getToolbarPosition()

new method: boolean isVertical()

new method: void scrollToToolButton(int)

new method: void setVerticalLayout(ViewGroup, AnnotationToolbarPosition)

SingleButtonToolbar

new constructor: SingleButtonToolbar(Context, AnnotationToolbarPosition)

pdfnet-demo-utils package

PopulateFileInfoListTask

new class: PopulateFileInfoListTask

new constructor: PopulateFileInfoListTask(FavoritesViewFragment, Context)

DialogConfirmationListener

new interface: DialogConfirmationListener

new method: void onDialogConfirmed()

FileManager

new static method: CharSequence createDeleteConfirmationMessage(Context, TrashEntity)

new static method: void showDeleteConfirmationDialog(Context, CharSequence, DialogConfirmationListener)
