Crop document pages in Android

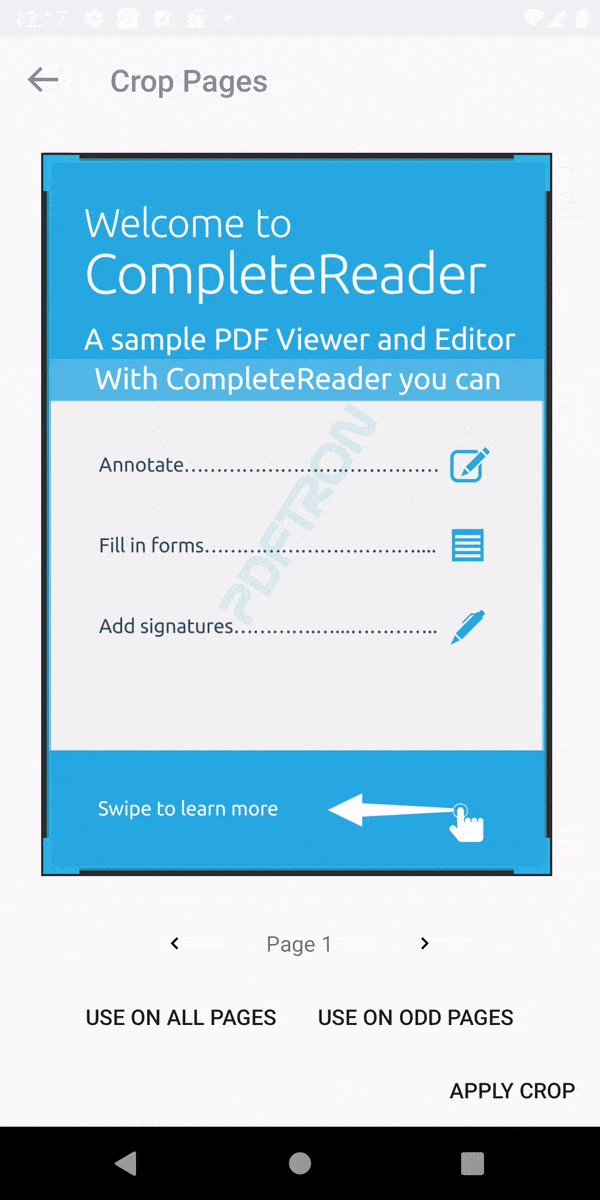

With the Apryse library you can crop pages manually or automatically, as well as reset document pages to their original size. The UserCropDialogFragment allows a user to adjust the page's crop box which can then be applied to a subset of pages or to all the pages in a document.

To show a user crop pages dialog in your activity, create a new instance of UserCropDialogFragment by calling newInstance() and setting the PDFViewCtrl:

private PDFViewCtrl mPdfViewCtrl;
// ...
public void showUserCropDialog(FragmentManager fragmentManager) {
    UserCropDialogFragment fragment = UserCropDialogFragment.newInstance();
    fragment.setPdfViewCtrl(mPdfViewCtrl);
    // Set a custom style for this dialog
    fragment.setStyle(DialogFragment.STYLE_NO_TITLE, R.style.PDFTronAppTheme);
    // Show the dialog
    fragment.show(fragmentManager, "user_crop_pages_dialog");
}

In order to view user cropped pages in PDFViewCtrl make sure you set Page.e_user_crop as the default page box:

mPdfViewCtrl.setPageBox(Page.e_user_crop);

You can also set a listener via setOnUserCropDialogDismissListener(...) to be notified when the user crop dialog is dismissed.

You can also automatically crop the edges of the document based on the position of the content. To do this, you can simply call the utility method UserCropUtilities.AutoCropInBackgroundTask and pass in your activity and PDFViewCtrl.

UserCropUtilities.AutoCropInBackgroundTask autoCropTask =
    new UserCropUtilities.AutoCropInBackgroundTask(getContext(), mPdfViewCtrl,
        new UserCropUtilities.AutoCropInBackgroundTask.AutoCropTaskListener() {
            @Override
            public void onAutoCropTaskDone() {
                // Auto crop task was finished or cancelled
            }
        });

If you wish to remove user defined cropping for a given page you can call the utility method UserCropUtilities.removeUserCropFromPage(Page).

Cropping pages using the above methods are at user-level. User-level page-cropping may not be handled well by other PDF viewers. To apply crop pages permanently use UserCropUtilities.cropDoc(PDFDoc).
