Android / Changelog / v9.2.3

Version 9.2.3 Changelog (June 1, 2022)

Version: 9.2.3.79556

Release Date: June 1, 2022

New features

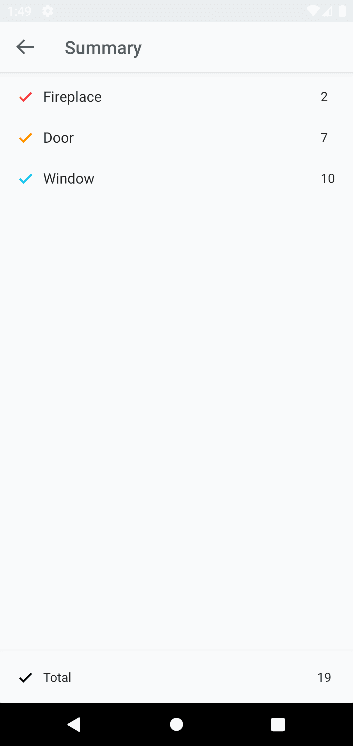

  • New measurement count tool in the Measure toolbar
measurement-count

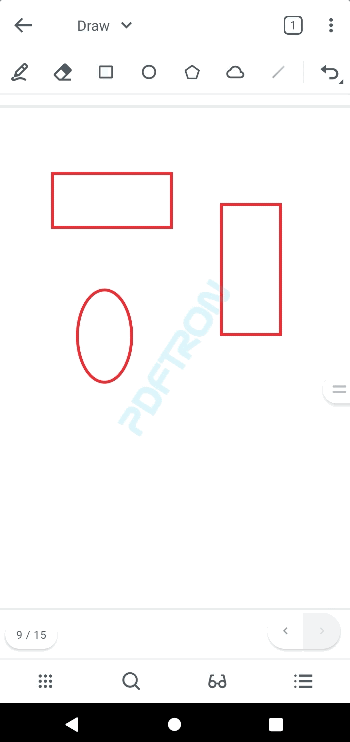

  • Adds ability to snap annotations to each other as well as with the page
annotation-snapping

Dependency changes

  • Room libraries are updated from 2.2.5 to 2.4.2

Fixed

  • Selected icon color in the annotation toolbar will now change color when the same type annotation is being modified
  • Fixes issue where the progress bar in search mode is white making it invisible in light theme
  • Fixes issue where the eraser tool from long press is not consistent with other tools for showing presets
  • Fixes the ripple effect for custom sticky button in the annotation toolbar component
  • Fixes issue where the annotation toolbar component will flash 2 line toolbar then change to 1 line in some situations
  • Fixes issue where FreeText does not behave correctly on rotated pages

APIs

PDFViewCtrlTools package

ToolManagerBuilder

new method: ToolManagerBuilder setShowTypedSignature(boolean)

ViewerConfig.Builder

new method: Builder annotationPositionSnappingEnabled(boolean)

new method: Builder userBookmarksListEditingMode(int)

AdvancedColorView

new method: void setIsDialogLayout(boolean)

ColorPickerView

new method: void setIsDialogLayout(boolean)

PdfViewCtrlTabBaseFragment

new method: boolean isWebViewConvertibleFormat()

PdfViewCtrlTabFragment2

new method: void setComponentListener(ComponentListener)

new method: void setSnackbarListener(SnackbarListener)

ComponentListener

new interface: ComponentListener

new method: PresetBarComponent getPresetBarComponent()

PdfViewCtrlTabHostFragment2

new method: PresetBarComponent getPresetBarComponent()

new method: void onShowSnackbar(CharSequence, int, CharSequence, OnClickListener)

modified class: PdfViewCtrlTabHostFragment2

Declaration
From:public class PdfViewCtrlTabHostFragment2 extends PdfViewCtrlTabHostBaseFragment implements TabListener
To:public class PdfViewCtrlTabHostFragment2 extends PdfViewCtrlTabHostBaseFragment implements TabListener,SnackbarListener,ComponentListener

ThumbnailsViewAdapter

new method: void setEditing(boolean)

UserBookmarkDialogFragment

new static final field: String BUNDLE_EDITING_MODE

new static final field: int CONTEXT_MENU_DELETE_ALL_BIT

new static final field: int CONTEXT_MENU_DELETE_ITEM_BIT

new static final field: int CONTEXT_MENU_EDIT_ITEM_BIT

CountToolCreatePresetDialog

new class: CountToolCreatePresetDialog

new constructor: CountToolCreatePresetDialog()

new static final field: String TAG

new method: void dismiss()

new method: AnnotationPropertyPreviewView getAnnotPreview()

new method: SparseArray<AnnotationPropertyPreviewView> getAnnotPreviews()

new method: AnnotStyle getAnnotStyle()

new static method: CountToolCreatePresetDialog newInstance()

new method: void onAnnotStyleLayoutUpdated()

new method: void onCreate(Bundle)

new method: View onCreateView(LayoutInflater, ViewGroup, Bundle)

new method: void onSaveInstanceState(Bundle)

new method: void onViewStateRestored(Bundle)

new method: void saveAnnotStyles()

new method: void setAnnotPreviewVisibility(int)

new method: void setAnnotStyle(AnnotStyle)

new method: void setAnnotStyleProperties(HashMap<Integer, AnnotStyleProperty>)

new method: void setListener(CountToolCreatePresetDialogListener)

new method: void setMeasureCountToolViewModel(MeasureCountToolViewModel)

new method: void setPresetBarViewModel(PresetBarViewModel)

new method: void setToolbarStyleId(String)

CountToolCreatePresetDialog.Builder

new class: Builder

new constructor: Builder()

new constructor: Builder(AnnotStyle)

new method: CountToolCreatePresetDialog build()

new method: Builder setAnnotStyle(AnnotStyle)

CountToolCreatePresetDialogListener

new interface: CountToolCreatePresetDialogListener

new method: void onPresetChanged(String, String, AnnotStyle)

CountToolDialogFragment

new class: CountToolDialogFragment

new constructor: CountToolDialogFragment()

new static final field: String COUNT_MODE

new static final field: String EDIT_MODE

new static final field: String PRESET_MODE

new static final field: String TAG

new method: void onCreate(Bundle)

new method: View onCreateView(LayoutInflater, ViewGroup, Bundle)

new method: void onViewCreated(View, Bundle)

new method: void setMode(String)

new method: void setPDFViewCtrl(PDFViewCtrl)

new method: void setPresetStyle(AnnotStyle)

new method: void setPresetViewModel(PresetBarViewModel)

new method: void setToolManagerViewModel(ToolManagerViewModel)

new method: void setToolbarStyleId(String)

MeasureCountTool

new class: MeasureCountTool

new constructor: MeasureCountTool()

new field: int annotCount

new field: String annotStyleJson

new field: long id

new field: String label

MeasureCountToolViewModel

new class: MeasureCountToolViewModel

new constructor: MeasureCountToolViewModel(Application)

new method: void delete(MeasureCountTool)

new method: void insert(MeasureCountTool)

new method: void observeCountToolPresets(LifecycleOwner, Observer<List<MeasureCountTool>>)

new method: void update(String, String, AnnotStyle)

CreateSignatureFragment

new static method: CreateSignatureFragment newInstance(int, float, boolean, boolean, boolean, boolean, boolean, HashMap<Integer, AnnotStyleProperty>, boolean, boolean)

SignatureDialogFragmentBuilder

new method: SignatureDialogFragmentBuilder usingShowTypedSignature(boolean)

SignatureFragmentAdapter

new method: SignatureFragmentAdapter setShowTypedSignature(boolean)

OnAnnotStyleChangedListener

new interface: OnAnnotStyleChangedListener

new method: void OnAnnotStyleDismiss(AnnotStyleDialogFragment)

new method: void onAnnotStyleColorChange(ArrayList<AnnotStyle>)

AnnotStyle

new static final field: int CUSTOM_ANNOT_TYPE_COUNT_MEASUREMENT

new method: boolean isCountMeasurement()

AnnotEdit

new method: boolean hasAnnotSelected()

AnnotEditRectGroup

new method: boolean hasAnnotSelected()

AnnotEditTextMarkup

new method: boolean hasAnnotSelected()

CountMeasurementCreateTool

new class: CountMeasurementCreateTool

new constructor: CountMeasurementCreateTool(PDFViewCtrl)

new static final field: String COUNT_MEASURE_CHECKMARK_ICON

new static final field: String COUNT_MEASURE_KEY

new static final field: String COUNT_MEASURE_LABEL_KEY

new method: int getCreateAnnotType()

new method: ToolModeBase getToolMode()

new method: void setTargetPoint(PointF)

new method: void setupAnnotProperty(AnnotStyle)

new method: void setupAnnotProperty(int, float, float, int, String, String)

Tool

new method: boolean hasAnnotSelected()

ToolManager

new method: AnnotSnappingManager getAnnotSnappingManager()

new method: OnAnnotStyleChangedListener getOnStyleChangedListener()

new method: SnackbarListener getSnackbarListener()

new method: boolean isShowTypedSignature()

new method: void onAnnotStyleColorChange(ArrayList<AnnotStyle>)

new method: void onAnnotStyleDismiss(AnnotStyleDialogFragment)

new method: Tool safeCreateTool(ToolModeBase)

new method: void setOnStyleChangedListener(OnAnnotStyleChangedListener)

new method: void setShowTypedSignature(boolean)

new method: void setSnackbarListener(SnackbarListener)

SnackbarListener

new interface: SnackbarListener

new method: void onShowSnackbar(CharSequence, int, CharSequence, OnClickListener)

ToolMode

new static final field: ToolMode COUNT_MEASUREMENT

AnnotSnappingManager

new class: AnnotSnappingManager

new constructor: AnnotSnappingManager()

new method: SnappingResult checkSnapping(PDFViewCtrl, Annot, Rect, int, boolean, boolean, boolean, boolean, boolean, boolean)

new method: void clearCache()

new method: void setEnabled(boolean)

new method: void setThreshold(double)

new method: void tryUpdateCache(PDFViewCtrl, boolean)

SnappingGroup

new final class: SnappingGroup

new static final field: SnappingGroup FORM_FIELD

new static final field: SnappingGroup FREE_TEXT

new static final field: SnappingGroup SHAPE

new static method: SnappingGroup valueOf(String)

new static method: SnappingGroup[] values()

SnappingResult

new class: SnappingResult

new constructor: SnappingResult()

new constructor: SnappingResult(Set<SnappingType>, Rect, List<Pair<Point, Point>>)

new method: Rect getRect()

new method: List<Pair<Point, Point>> getSnappingLines()

new method: Set<SnappingType> getSnappingType()

new method: boolean isSnapping()

SnappingType

new final class: SnappingType

new static final field: SnappingType BOTTOM

new static final field: SnappingType CENTER_HORIZONTAL

new static final field: SnappingType CENTER_HORIZONTAL_PAGE

new static final field: SnappingType CENTER_VERTICAL

new static final field: SnappingType CENTER_VERTICAL_PAGE

new static final field: SnappingType LEFT

new static final field: SnappingType RIGHT

new static final field: SnappingType TOP

new static method: SnappingType valueOf(String)

new static method: SnappingType[] values()

AnnotUtils

new static method: int getAnnotBaseRotation(PDFViewCtrl, int)

new static method: int getAnnotRotationRelToPage(PDFViewCtrl, Annot, int)

new static method: boolean isCountMeasurement(Annot)

new static method: void saveUnrotatedBBox(PDFViewCtrl, Annot, int)

removed static method: void saveUnrotatedBBox(Annot)

Constants

new static final field: String[] FILE_NAME_EXTENSIONS_WEBVIEW

DrawingUtils

new static method: void drawGuideline(Canvas, Path, float, float, float, float, Paint)

EventHandler

new static final field: String TOOLBAR_METADATA_KEY

Utils

new static method: boolean isConvertibleFormat(String, String[])

new static method: boolean isConvertibleFormatFromExt(String, String[])

AnnotView

new method: void clearPositionGuidelines()

new method: void setPositionGuidelines(List<Pair<Point, Point>>)

AnnotViewImpl

new method: void addPositionGuidelines(Pair<Point, Point>)

PresetBarComponent

new method: void handleAnnotStyleDialogDismiss(AnnotStyleDialogFragment)

new method: void handleAnnotStyleDialogDismiss(AnnotStyleDialogFragment, int, String)

PresetBarViewModel

new method: boolean hasCountMeasurementPresets()

new method: void observeAnnotStyles(LifecycleOwner, Observer<ArrayList<AnnotStyle>>)

new method: void populateAnnotationStylesAsync()

new method: void saveCountMeasurementPreset(String, AnnotStyle, String, int)

SinglePresetState

new static method: SinglePresetState fromAnnotStyle(AnnotStyle, int)

new method: AnnotStyle getAnnotStyle()

new method: int getIconRes()

new method: void setAnnotStyle(AnnotStyle)

new method: void setIconRes(int)

PresetSingleButton

new method: void setPresetAnnotStyle(AnnotStyle, int)

ToolbarButtonType

new static final field: ToolbarButtonType COUNT_MEASUREMENT

AnnotationToolbarComponent

new method: void disableAllItems()

ButtonId

new static final field: ButtonId COUNT_TOOL

ActionToolbar

new method: void disableAllItems()

AnnotationToolbarView

new method: void deselectAllToolbarButtons()

new method: void disableAllItems()
