Adjusting layout and zoom using the Document Viewer

The DocumentViewer class and object helps to facilitate rendering the document in the default UI and as well as a custom UI. It also provides the APIs to adjust aspects of the viewing experience, such as switching to single page mode or changing the zoom level.

Display Modes

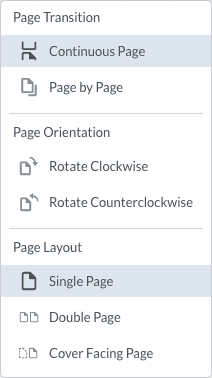

Working with display modes refers to working with how the document is displayed in the viewer. This refers to the Page Transition and Page Layout options in the viewing options of the default WebViewer UI.

Apryse Docs Image

There are a few modes supported by default:

  • Single - Displays one page at a time.
  • Continuous - Displays all the pages in a scrolling view in one column.
  • Facing - Displays up to two pages at a time, side by side.
  • FacingContinuous - Displays all pages in a scrolling view in two columns.
  • Cover - Displays all pages in a scrolling view in two columns. The first row has a single page in the second column.
  • CoverFacing - Same as the Cover display mode except that it is not a scrolling view.
  • Custom - Any custom display mode.

These values are found in an enumeration called DisplayModes under the Core namespace.

JavaScript

1const mode = Core.DisplayModes.Continuous;

Related Links

Reading the current display mode

The DocumentViewer provides an API to read the current display mode. This is done through the DisplayModeManager and calling the getDisplayMode API.

JavaScript

1const displayModeManager = documentViewer.getDisplayModeManager();
2const mode = displayModeManager.getDisplayMode();

Related Links

Setting the display mode

Just like reading the display mode, there is a setDisplayMode API to set the display mode. We can use the DisplayModes enumeration to help.

JavaScript

1documentViewer.addEventListener('documentLoaded', () => {
2  const displayModeManager = documentViewer.getDisplayModeManager();
3  displayModeManager.setDisplayMode(new Core.DisplayMode(documentViewer, Core.DisplayModes.Single));
4});

Related Links

Zooming into content

Alongside changing how a document is viewed, the DocumentViewer also allows you to change the zoom level programmatically. This is done with the zoomTo API function:

JavaScript

1documentViewer.zoomTo(1.5); // Zoom amount: 150%

Related Links

In some cases, you may want to zoom towards the cursor location. This is possible as well with the zoomToMouse API without having to work too much with coordinates. It does take additional parameters to offset the zoom to avoid any toolbars or scrollbars as necessary.

JavaScript

1documentViewer.zoomToMouse(
2  1.5, // Zoom amount: 150%
3  0,   // Optional: Offset from the mouse X location
4  0,   // Optional: Offset from the mouse Y location
5);

Related Links

The DocumentViewer also handles page rotations as well. You can read more about in our page rotation guide.

Zooming in and out triggers the zoomUpdated event.

Customizing the scroll view element

If you have built a custom UI, chances are you already have your own scroll view element to customize. If you want to further customize the scroll view element from the default WebViewer UI, this is completely possible by calling the getScrollViewElement API:

JavaScript

1const scrollView - documentViewer.getScrollViewElement();
2scrollView.style.borderColor = '#FF0000';
3scrollView.addEventListener('scroll', (event) => {
4  // Do something on scroll
5});

Related Links

Next steps

Read more on how to make your own custom UI with your own features!
